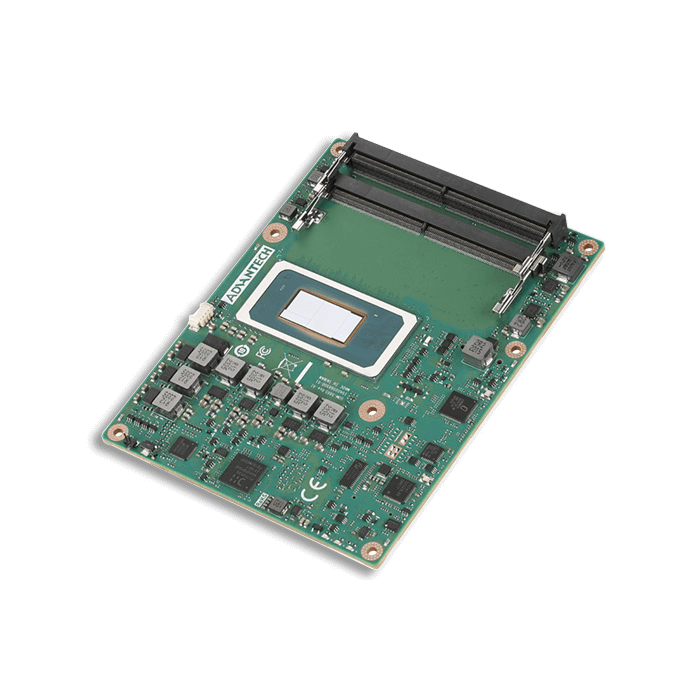

SOM-5885
SOM-5885
Advantech
Intel® 14th Gen Core Processors (Code Name: Meteor Lake-U/H) COM Express Basic Type6 Module
COM Express Basic Type 6 - COM-HPC with Integrated NPU & PCIe Gen5
COM Express Basic Type 6 provides triple DDI display interfaces, HDA, abundant super speed I/Os and high bandwidth expansion interfaces such as USB3.1, SATAIII and PEG/PCIe gen3. It comes with excellent computing and graphics performance.
Powerful Computing & Advanced Cooling
- Up to 14C/20T CPU, +24% CPU performance & 96GB DDR5 5600MT/s SODIMM
- QFCS cooler with radiation optimised
Excellent Xe LPG Graphics Performance
- 1.9X Gfx growth, with integrated NPU, up to 32 TOPS (14th Gen.)
- 128EU, 4 * 8K DD
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Pin Out Type | COM Express R3.1 Type 6 compatible |
| Base Frequency | 1.4GHz/0.9GHz |
| Max Single Core Turbo Frequency | 5GHz/3.8GHz |
| Core/Thread | 14C (6P+8E) |
| LLC | 24M |
| TDP Range | 20W-45W |
| BIOS | AMI UEFI 256Mbit |
| Speed | 5600 MT/s |
| EEC Support | Yes |
| Max Memory Capacity | Up to 96GB |
| LCD | 1port LVDS Dual channel: 1920 x 1200 @60Hz/eDP 4096 x 2304 @60Hz |
| Multiple Display | Quad Simultaneous Independent Display |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| CAN Bus | Support one CAN Bus option from COM Port |
| SATA3.0 | 2 |
| USB 4.0 | 2 |
| SPI Bus | Yes. For BIOS EEPROM, Support Dual BIOS failsafe |
| GPIO | 8-bit, Default from iManager, Option from CPU |
| TPM | TPM2.0 |
| Power Type | ATX: Vin, VSB; AT: Vin |
| Power Consumption (Max) | TBD |
| Power Consumption (Idle) | TBD |
| Vibration Resistance | 3.5 Grms |
| DDI | 3 DDI Port Support Configurable HDMI/DisplayPort -HDMI 2.1: 4096 x 2304 @ 60Hz -DisplayPort 2.1 HBR3: 4096 x 2304 @ 60Hz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
